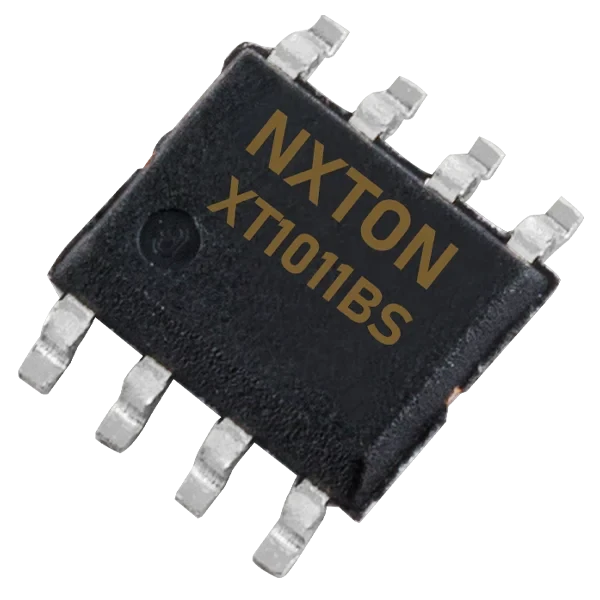

The XT1011BS is a special chip for emergency detection control. The chip is special high-voltage isolation and inspection technology, without any peripheral components directly monitoring the AC input signal status and drive the LED chips directly or indirectly. Full voltage is also supported85-265VAC input. The XT1011BS integrates high-precision single-cell lithium battery management. XT1011BS has overcharge Protection, over-discharge protection, overcurrent protection, and short-circuit protection. Up to 1A drive capability is supported on the XT1011BS EN side. Limits can be made directly in series. Flow resistors drive single-string LED chips directly, while also supporting external boost circuits Drive multiple strings of LED chips The XT1011BS is available in ROHS SOP-8-compliant packages with operating temperature ranges-400C to 120⁰C.
