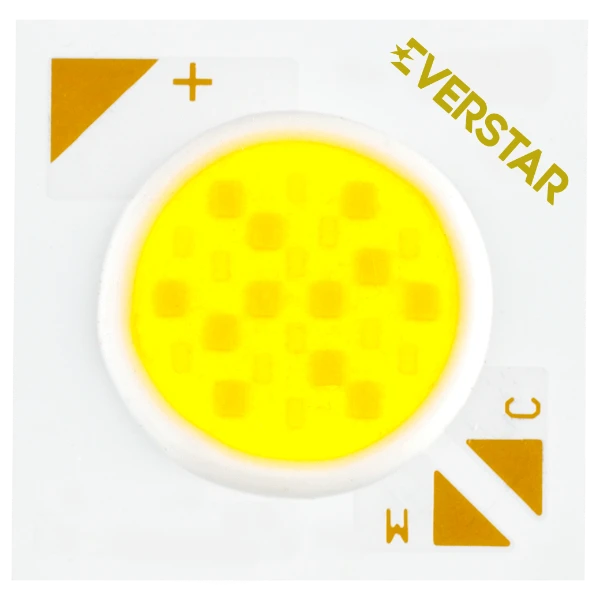

PartNumber: ES-11-EQ-16-400-2770T80
The series of products ,which use mirror aluminum for substrate.The products have high brightness, long life, a variety of power, easy installaton, general size, which are especially suitable for
indoor and outdoor lighting products, etc.
INTRODUCTION
1. High brightness high reliability long life
2. Light angle：120°
3. Typical color temperature：6500K/5000K/4000K/3500K/3000K/2700K
4. Ra ：80+
5. In line with the EU ROHS standard
| Product Group | COB |
|---|---|
| LES | 11 |
| Forward Current | 450mA |
| Input Voltage (V) | 36V |
| Wattage | 13-16 W |
| Color Temperature (CCT) | 2700-6500K |
| Size (MM) | 13.5*13.5*0.9 |
Download the datasheet to view detailed specifications.
Download
