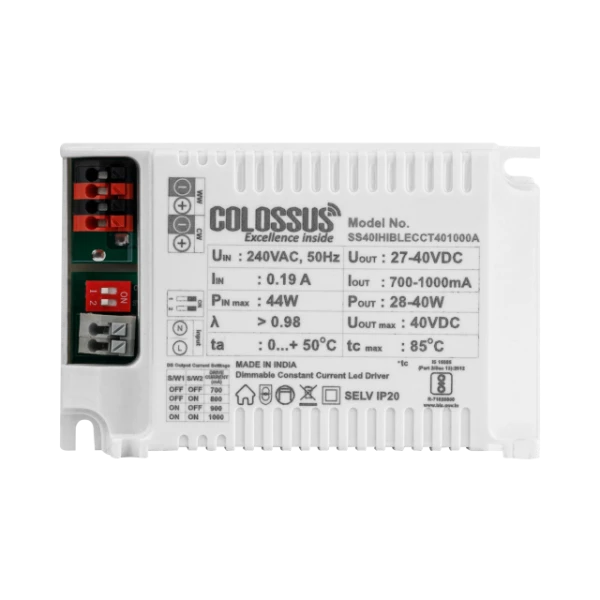

PartNumber: SS40IHIBLECCT401000A
• Smart Dimmable Constant Current Driver for Led Modules
• Input Voltage 240VAC
• High Efficiency >88% (@100% Load)
• Power Factor >0.98, THD<10%(@100%Load)
• For use in combination with Luminaries of Protection Class II
• Protection against Abnormal Operating Conditions Like
Input Over Voltage Protection, Under Voltage Protection, Short Circuit Protection,
Open Voltage Protection, Overload Protection.
• Surge Protection 4KV
• Compatible with BLE, BLE MESH & ZIGBEE Module
• Nominal Life Time: 30,000 hours @ tc ≤ tcmax
| Application Area | Indoor |
|---|---|
| output power | 28-40W |
| Product group | Smart Compact Driver |
| Features | 2xCH,Dimable |
| Output Current | 700-1000mA |
| Warranty | 2 years |
| Output Voltage | 27-40V |
| Power factor | HPF |
| Dimming interface | BLE MESH |
| Surge Protection (KV) | 4 KV |
| Height | 32mm |
| Lifetime | 30000h |
| Type of protection | IP20 |
| isolation | Isolated |
| Operating Mode | Constant Current |
