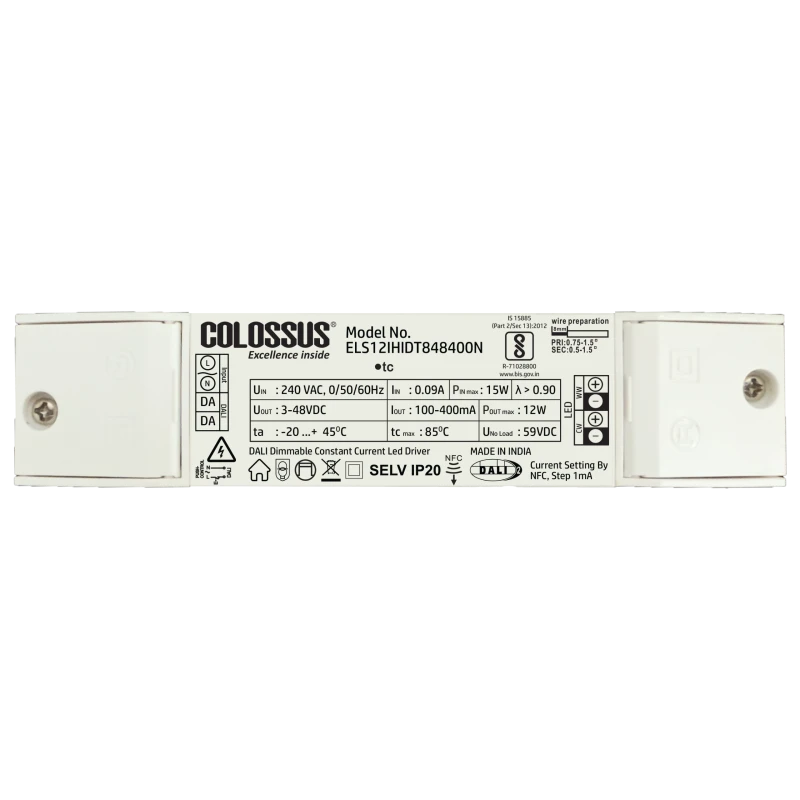

DALI-2 NFC 12W 100-400mA DT8 – Flicker Free

COLOSSUS

PartNumber: Not provided

Price
Login for Price
Quantity
Available on Request
Need more quantity?
Unit Price
Product Description
  • DALI-2 Dimmable Constant Current Driver for LED Modules
  • This driver is compatible with NFC for easy configuration.
  • Configurable parameters (operating mode, channel mode, fade time, dimming curve, CLO, min-max levels, scenes, groups, etc.)
  • Input Voltage 240VAC
  • Output Ripple Current <5% (@ Full Load, <120 Hz) – Flicker Free
  • High Efficiency >85% (@ Full Load)
  • Power Factor >0.90, THD <10% (@100% Load)
  • Compatible with DALI-2 & PUSH Dimming
  • Nominal Lifetime: 1,00,000 hours @ tc = 45°C
Product Group DALI Linear – NFC Driver
Output Power 12W
Output Voltage 4-48V
Output Current 4-48V
Input Voltage 240VAC
Power Factor >0.90, THD <10%
Efficiency >85% (@ Full Load)
Surge Protection 2KV
Protections/Features IP20
Operating Mode Constant Voltage
SELV/Isolation SELV60
Warranty 5 Years
Lifetime 50000h
0.0 out of 5
0 reviews
No reviews yet
There have been no reviews for this product yet.

Download the datasheet to view detailed specifications.

Download
