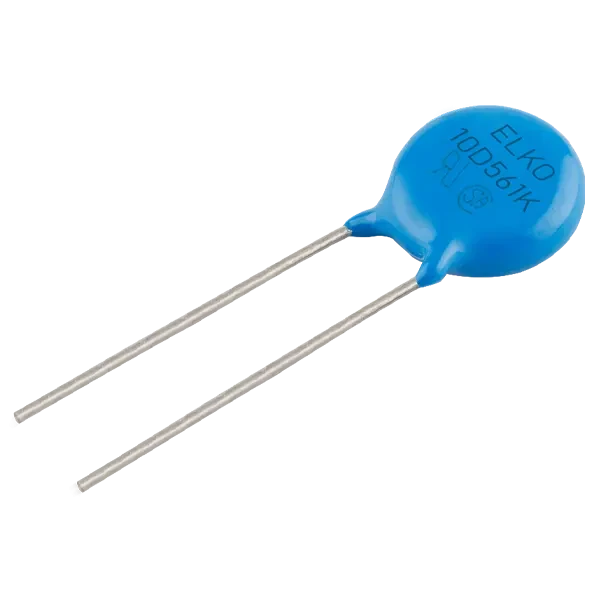

ELKO MOV E 10D561K

(0 reviews)

1000 available

Brand

ELKO Power

Unit Price: 1.5

PartNumber: E 10D561K

Min QTY	Max QTY	Unit price

Quantity

(1000 available)

METAL OXIDE VARISTOR

Varistors are used as control or compensation elements in circuits either to provide optimal operating conditions or to protect against excessive transient voltages. When used as protection devices, they shunt the current created by the excessive voltage away from sensitive components when triggered.

MOVs are specified according to the voltage range that they can tolerate without damage. Other important parameters are the varistor's energy rating in joules, operating voltage, response time, maximum current, and breakdown (clamping) voltage.

Max Voltage Allowable AC rms	350
Max Voltage Allowable DC V	450
Max. Energy J 10/1000us High	106
Max. Energy J 10/1000us Standard	102
Max. Energy J 2ms High	52.9
Max. Energy J 2ms standard	42.3
Product group	ELKO MOV
Rated Power	0.4
Voltages	560(504-616)
