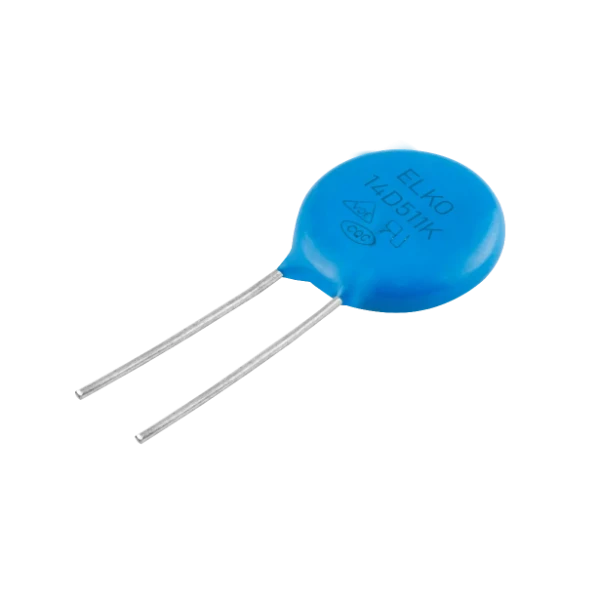

ELKO MOV E 14D511K

ELKO Power
(0 reviews)

PartNumber: E 14D511K

Quantity
Available on Request
Need more quantity?
Unit Price
🔒 Login for Price
METAL OXIDE VARISTOR

Varistors are used as control or compensation elements in circuits either to provide optimal operating conditions or to protect against excessive transient voltages. When used as protection devices, they shunt the current created by the excessive voltage away from sensitive components when triggered.

MOVs are specified according to the voltage range that they can tolerate without damage. Other important parameters are the varistor's energy rating in joules, operating voltage, response time, maximum current, and breakdown (clamping) voltage.

Max Voltage Allowable DC V 410
Voltages 510(459-561)
Product group ELKO MOV
Max. Energy J 2ms High 105.8
Max. Energy J 10/1000us Standard 148
Max. Energy J 10/1000us High 180
Rated Power 0.6
Max Voltage Allowable AC rms 320
Max. Energy J 2ms standard 84.6
