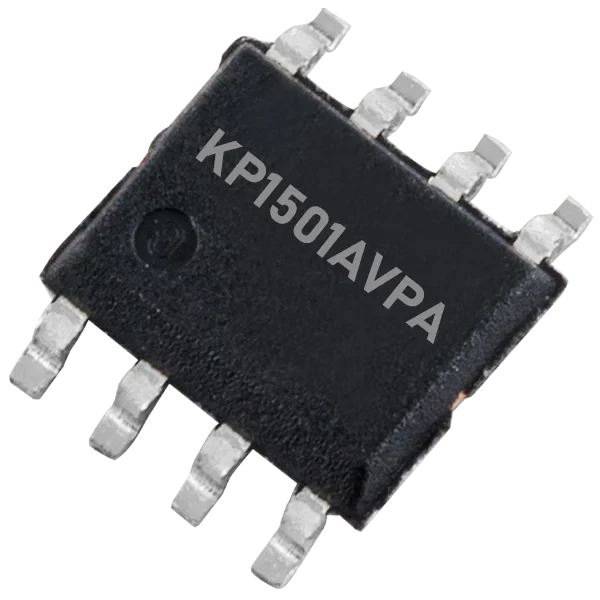

KIWI IC KP1501AVPA

Kiwi Instruments

PartNumber: KP1501AVPA

Quantity
Available on Request
Need more quantity?
Unit Price
DESCRIPTION
KP1501AVP is a low cost, highly integrated PWM power switch for non-isolated buck applications.KP1501AVP combines a 500V power MOSFET with the ON/OFF PWM controller in one chip. The IC can achieve high precision 5V default Output at universal AC input. In KP1501AVP, T off_min is set to 20μs with frequency shuffling. The IC has built- in green mode control for light and zero loadings, which can achieve less than 50mW standby power.KP1501AVP integrates functions and protections of Under Voltage Lockout (UVLO), Cycle-by-cycle Current Limiting (OCP),On-chip Thermal Shutdown (OTP), Abnormal Over Current Protection (AOCP), Over Load Protection(OLP) Short Load Protection (SLP), etc.
Product group Integrated Circuit (IC)
Package SOP-4
Model Number KP1501AVPA
Operating Mode Multi-mode PWM control, Offline PWM-controlled power switch
Product Keywords Offline PWM Power Switch, Fixed 5V Output, Buck Converter, Buck-Boost Converter, Auxiliary Power Supply
Protections/Features Soft-Start, Under-Voltage Lockout (UVLO), Cycle-by-Cycle Over-Current Protection (OCP), Overload Protection (OLP), Output Over-Voltage Protection (OVP), Over-Temperature Protection (OTP), Auto-Recovery
Internal MOS Integrated 500V High-Voltage MOSFET
Output Current 100mA (5V Output)
Application Area Small Appliance Power Supplies, Auxiliary Power Supplies, Smart Home Devices
