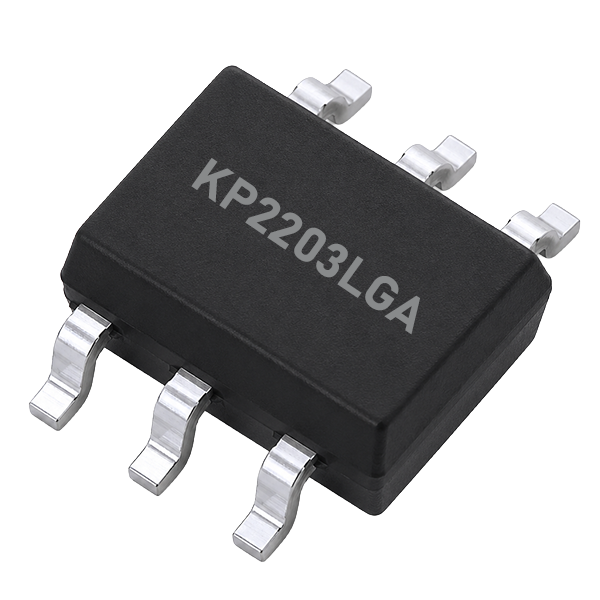

KP2203LGA

PartNumber: Not provided

Price

Login for Price

Quantity

Available on Request

Unit Price

Login for Price

Product Description

Product Description:
KP2203LGA is a high-performance current-mode PWM controller for offline flyback converters. It operates in green power mode with burst mode, valley switching under medium load, and CCM under heavy load to improve efficiency. The device integrates a 65kHz/100kHz oscillator, slope compensation, soft-start, frequency dithering, loop gain adjustment, and comprehensive protection features, making it suitable for PD chargers and wide-output-voltage AC/DC adapters.

Product group	Integrated Circuit (IC)
Package	SOT-23-6
Model Number	KP2203LGA
Operating Mode	Quasi-Resonant (QR) / Continuous Conduction Mode (CCM) Current-Mode Offline Flyback Controller with Secondary-Side Feedback
Product Keywords	Offline Flyback Controller, Current-Mode PWM Controller, QR Flyback Controller, Secondary-Side Feedback, AC-DC Power Converter
Protections/Features	Over Voltage Protection (OVP), Short Circuit Protection (SCP), Overtemperature Protection (OTP), Under Voltage Protection (UVP)
Application Area	PD Chargers, AC/DC Adapters
