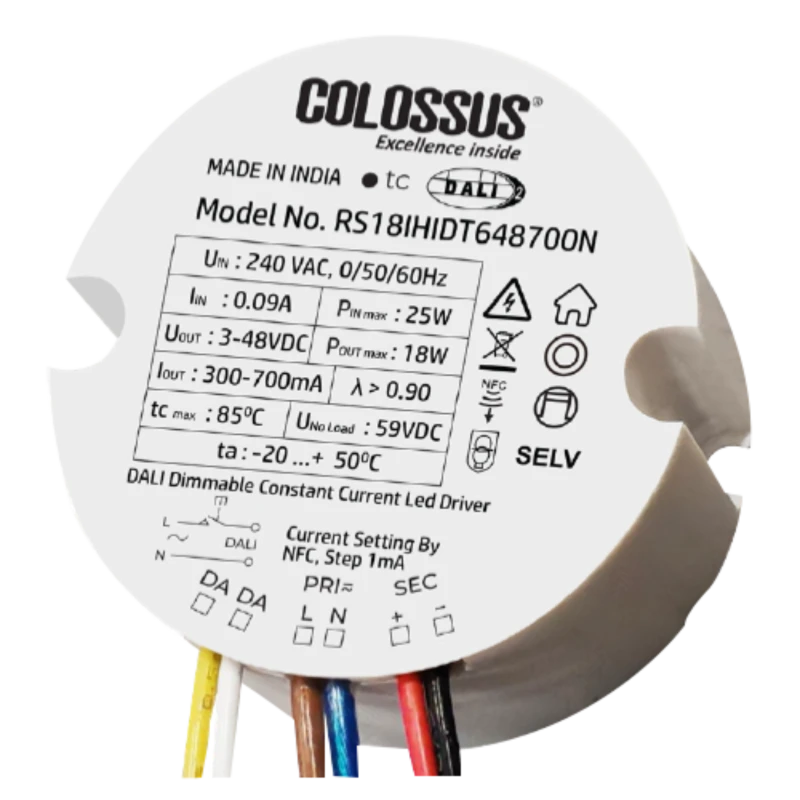

DALI-2 NFC 18W Round Driver

COLOSSUS

PartNumber: Not provided

Price
Login for Price
Quantity
Available on Request
Need more quantity?
Unit Price
Product Description
  • . DALI-2 Dimmable Constant Current Driver For Led Modules
  • . This driver is compatible with NFC for easy configuration.
  • . Configurable parameters (operating mode, channel mode, fade time, dimming curve, CLO, min-max levels, scenes, groups, etc.)
  • . Input Voltage 240VAC
  • . Output Ripple Current <5% (@ Full Load, <120 Hz) – Flicker Free
  • . High Efficiency >82% (43VDC@350mA)
  • . Power Factor >0.90, THD<15%(@100%Load)
  • . Compatible with DALI-2
  • . Nominal Life Time: 1,00,000 hours @ tc = 45°C
Product Group DALI Linear – NFC Driver
Output Power 18W
Output Voltage 3-48V
Output Current 300-700mA
Input Voltage 240VAC
Power Factor >0.90, THD<15%(@100%Load)
Efficiency >82% (43VDC@350mA)
Surge Protection 2KV
Protections/Features IP20
Operating Mode Constant Voltage
SELV/Isolation SELV60
Warranty 5 Years
Lifetime 50000h
0.0 out of 5
0 reviews
No reviews yet
There have been no reviews for this product yet.

Download the datasheet to view detailed specifications.
