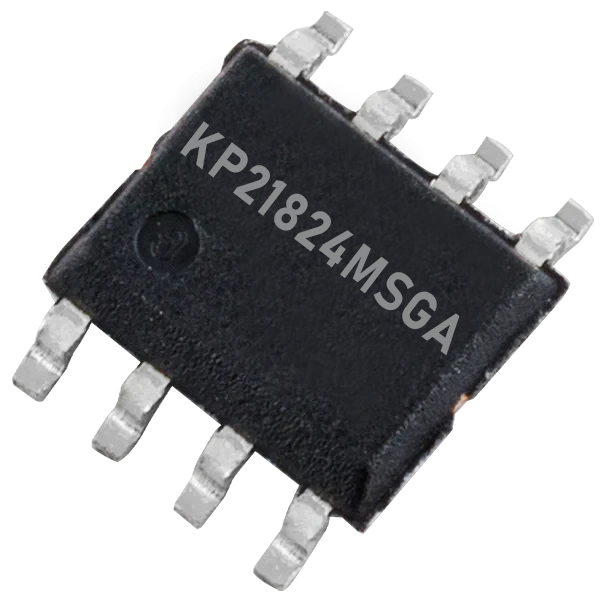

KP21824MSGA

TAICANG

PartNumber: Not provided

Price
Login for Price
Quantity
Available on Request
Need more quantity?
Unit Price
Product Description
  • Product Description:
  • KP21824MSGA is a high-efficiency quasi-resonant primary-side regulated CV/CC power switch for offline flyback power supplies. It integrates a 650V power MOSFET, supports multi-mode primary-side control, provides high constant-voltage and constant-current accuracy, low standby power consumption, optimized EMI performance, and comprehensive protection functions for reliable charger and adapter applications.
Product group Integrated Circuit (IC)
Package SOP-8
Model Number KP21824MSGA
Operating Mode Quasi-Resonant Primary-Side Constant Voltage/Constant Current (CV/CC) Power Switch
Product Keywords Primary-Side Regulation Power Switch, Quasi-Resonant Power Switch, CV/CC Power Switch, Offline Flyback Controller
Protections/Features Single-Point Failure Protection (SFP), Output Short-Circuit Protection (SLP), FB Over-Voltage Protection (FB OVP), Over-Temperature Protection (OTP), VDD Over-Voltage Protection, VDD Under-Voltage Lockout (UVLO), VDD Clamp Protection, Line Compensation, Audio Noise Free Operation
Internal MOS Integrated 650V MOSFET
Application Area Mobile Phone Chargers, AC/DC Adapters
