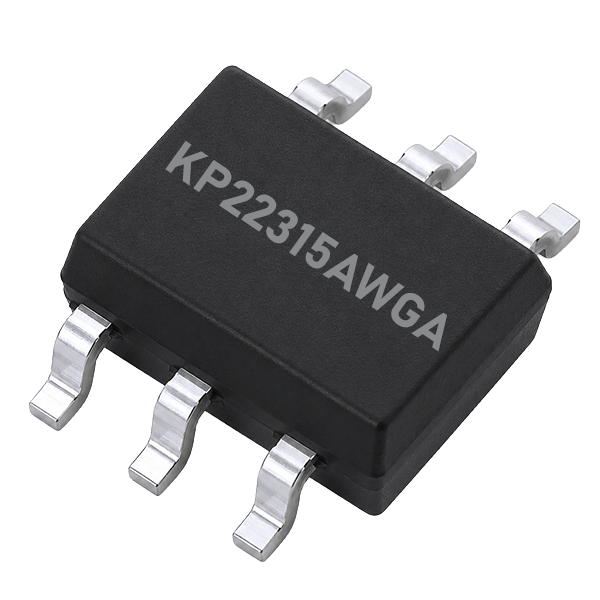

KP22315AWGA

PartNumber: Not provided

Price

Login for Price

Quantity

Available on Request

Unit Price

Login for Price

Product Description

Product Description:
KP22315AWGA is a high-performance, high-efficiency quasi-resonant current-mode AC-DC power converter for offline flyback applications. It integrates a 650V power MOSFET and a high-voltage startup circuit, operates with secondary-side feedback, and features an 80kHz switching frequency with frequency modulation for improved EMI performance and low standby power consumption. Comprehensive protection functions enhance reliability in charger and adapter applications.

Product group	Integrated Circuit (IC)
Package	ASOP-6
Model Number	KP22315AWGA
Operating Mode	Quasi-Resonant (QR) Current-Mode Offline Flyback AC-DC Power Converter
Product Keywords	Offline Flyback Converter, Quasi-Resonant PWM Controller, AC-DC Power Converter, Secondary-Side Feedback, Constant Voltage (CV) Controller
Protections/Features	Soft-Start, Under-Voltage Lockout (UVLO), VDD Over-Voltage Protection, Brownout Protection, Input Over-Voltage Protection (LOVP), Output Over-Voltage Protection (OVP), Cycle-by-Cycle Over-Current Protection (OCP), Abnormal Over-Current Protection (AOCP), Overload Protection (OLP), Output Over-Current Protection (SOCP), Short-Circuit Protection (SCP), Over-Temperature Protection (OTP), Leading Edge Blanking (LEB)
Internal MOS	Integrated 650V MOSFET
Application Area	Chargers, AC/DC Power Adapters
