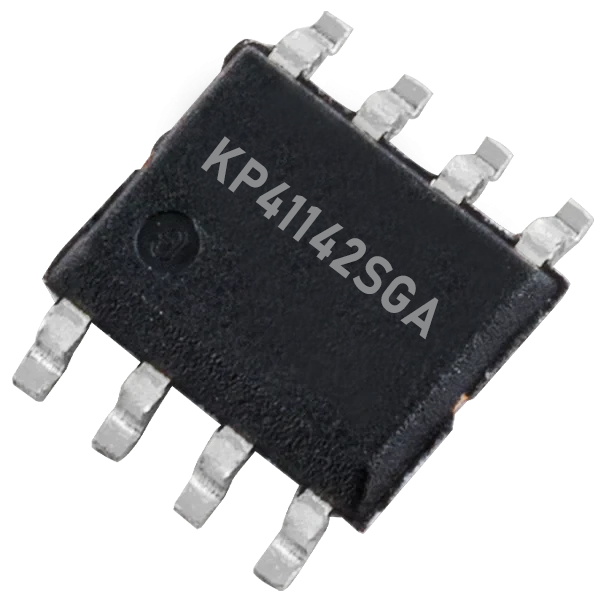

KP41142SGA

PartNumber: Not provided

Price

Login for Price

Quantity

Available on Request

Unit Price

Login for Price

Product Description

Product Description:
KP41142SGA is a high-performance secondary-side synchronous rectification power switch designed for flyback converters. It supports both high-side and low-side synchronous rectification configurations and operates in discontinuous conduction mode (DCM) and quasi-resonant (QR) mode. The device integrates a 40V low-RDS(on) MOSFET and an internal high-voltage VDD supply module, eliminating the need for an auxiliary VDD winding while improving power conversion efficiency.

Product group	Integrated Circuit (IC)
Package	SOP-8
Model Number	KP41142SGA
Operating Mode	Secondary-Side Synchronous Rectification (SR) Power Switch for Flyback Converters, supports High-Side and Low-Side configurations, DCM and Quasi-Resonant (QR) modes.
Product Keywords	Secondary-Side Synchronous Rectifier, SR Power Switch, Flyback Synchronous Rectifier, High-Side SR, Low-Side SR.
Protections/Features	Under-Voltage Lockout (UVLO), VDD Voltage Clamp Protection.
Internal MOS	Integrated 40V Power MOSFET (11.5mΩ RDS(on)).
Application Area	Secondary-side synchronous rectification for flyback converters, replacing Schottky rectifier diodes to improve system efficiency.
